Item # 1500CY

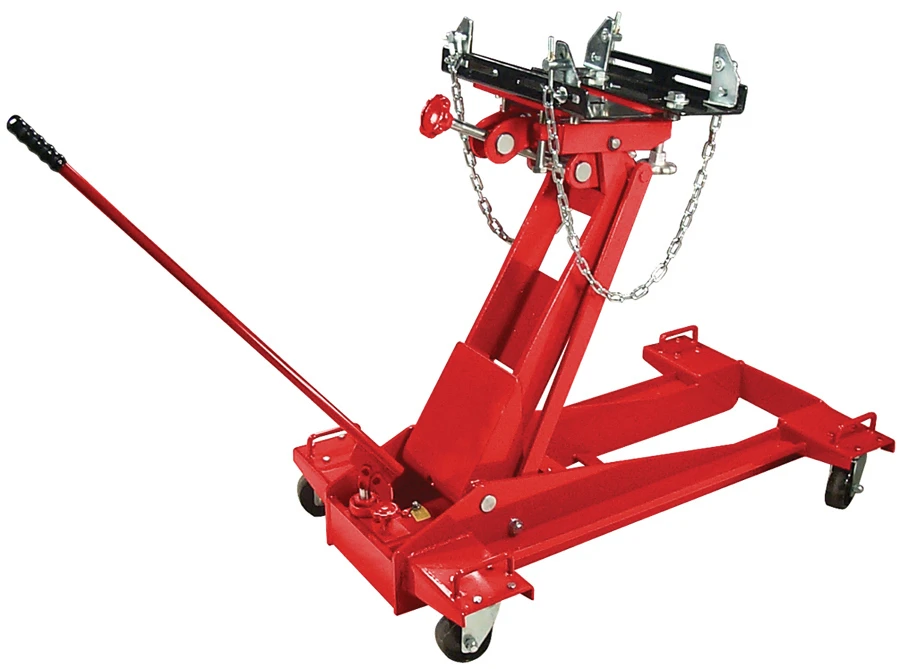

1-1/2 Ton Capacity Truck Transmission Jack

• Designed for removal and installation of heavy-duty truck transmissions or differentials
• Safety overload system prevents jack from being used beyond its rated capacity
• Flash chrome ram inhibits rust from entering the hydraulic system
• Fully adjustable universal saddle with adjustable corner brackets and safety chain
• Pump handle rotates 360° for all position operation
• Safety by-pass system prevents damage to cylinder
• Four full-swivel ball bearing caster wheels for easy positioning
• Low frame easily clears undercarriage obstacles
• 4-way swivel

OFF SHELF (Try Item # 1500EX)

Part Breakdown

Download(275 KB)

Product Info

Download(159 KB)

SPECIFICATIONS:
Weight Capacity: 3,000lbs. (1-1/2 Ton)
Min. Saddle Height: 9""
Max. Saddle Height: 37""
Hydraulic Lift: 28""
Chassis Length: 44-1/2""
Chassis Width: 25-1/2""(648mm)
Saddle Tilt Forward: 30°
Saddle Tilt Backward: 15°
Saddle Left & Right: 12°
Net Weight: 300lbs

SKU: 1500CY Categories: ,
