Item # 1500A

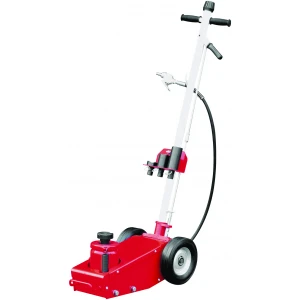

15 Ton Capacity Air Hydraulic Jack
• Safety overload system prevents jack from being used beyond its rated capacity
• Jack release valve is top mounted at “”T”” handle and allows jack operation at any handle position
• Long “T” handle for easy positioning
• Foot pedal brings saddle up to load quickly
MEETS ANSI STANDARD FOR PERFORMANCE AND SAFETY
NO LONGER AVAILABLE
Specifications:
Weight Capacity 33,000lbs. (15 Ton)
Min. Saddle Height 6-7/8" (175mm)
Max. Saddle Height 25-5/8" (650mm)
Hydraulic Lift 18-3/4" (475mm)
Chassis Length 68-3/4" (1746mm)
Chassis Width 9" (232mm)
Height with Handle 47-1/2" (1209mm)
Average Air Consumption 15.9cfm
Air Pressure: 90psi
Net Weight 517lbs. (235kg)
