Item # 3006

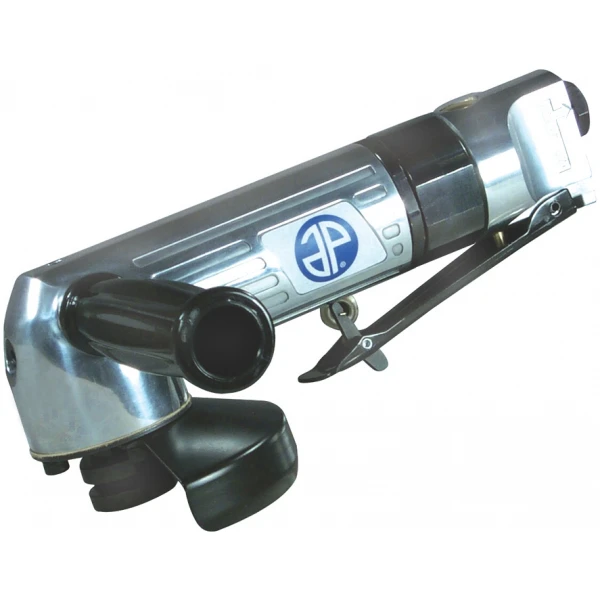

4″ Air Angle Grinder with Lever Throttle

• Handles a variety of body shop works, automobile and truck repair
• Widely applied for weld preparation, deburring, blending and smoothing applications
• Spiral bevel gears in angle head guarantees the best linear accuracy and uniformed teeth shape for smooth and quiet operation
• Ni-Cr-Mo alloy steel spiral bevel gear via triple heat treatment processes to submit wear-resistant surface and high strength core structure for long time and heavy duty operation
• Outstanding side exhaust offer the best motor efficiency
• 360 degree directional exhaust prevents unwanted blowback
• Motor speed controller that virtually eliminates over speed and prevents grinding wheel from shattering


Pad Size: 4"
Free Speed: 11,000rpm
Overall Length: 9.25" (235mm)
Net Weight: 4lbs. (1.81kg)
Spindle Thread Size: 3/8" - 24
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumpt: 10cfm
Air Pressure: 90-120psi

Part Breakdown

Download(3 MB)

Product Info

Download(543 KB)
