Item # PR36

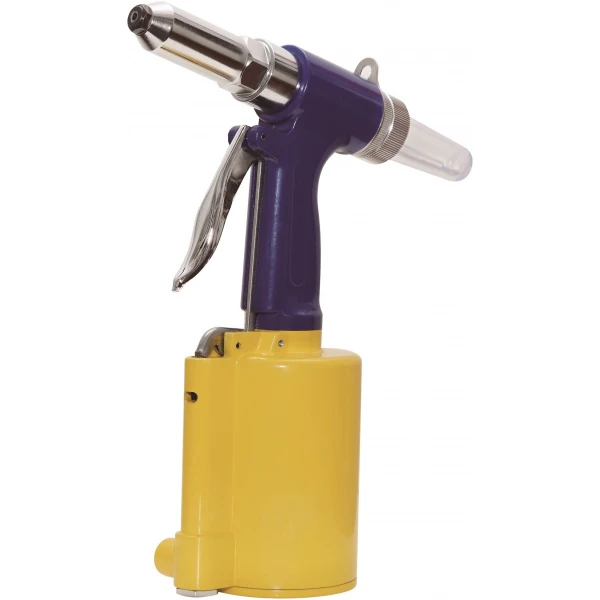

Air Riveter – 3/32″, 1/8″, 5/32″ & 3/16″ Capacity

• Includes the following nosepieces: 3/16″” (4.8mm), 5/32″” (4mm), 1/8″” (3.2mm), 3/32″” (2.4mm)
• Performs well at any angle

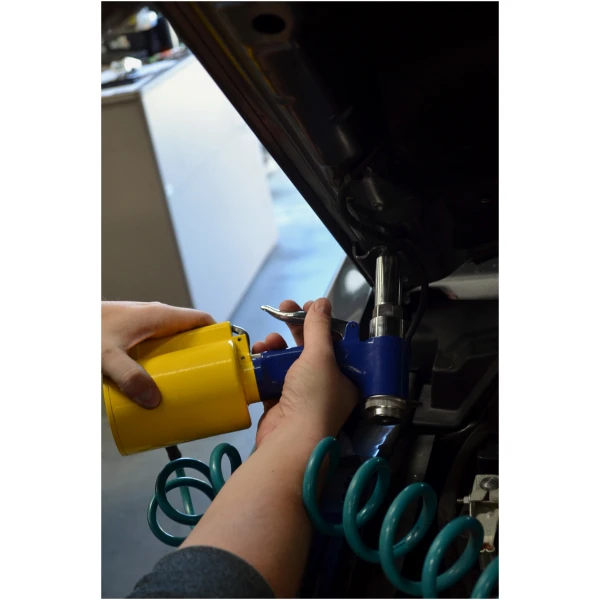

• Gets into hard-to-reach areas
• Provides quick, quiet and comfortable operation preventing user fatigue
• Lightweight
• High Efficiency
• Assembled with special high quality hydraulic oil for excellent performance, even at extremely low temperatures, and extended life of the seals

Parts Breakdown

Download (2 MB)

Product Info

Download (971 KB)

Specifications
Rivet Capacity: 3/16"3/16
Overall Length: 10-5/8" (270mm)
Net Weight: 3lbs. (1.41k)
Pulling Pressure: 1938 lbs
Pulling Force: 380lbs
Stroke: 1/2" (14mm)
Motor: 1/2hp
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 4cfm
Air Pressure: 90-120psi

Capacity
