Item # EVOT13

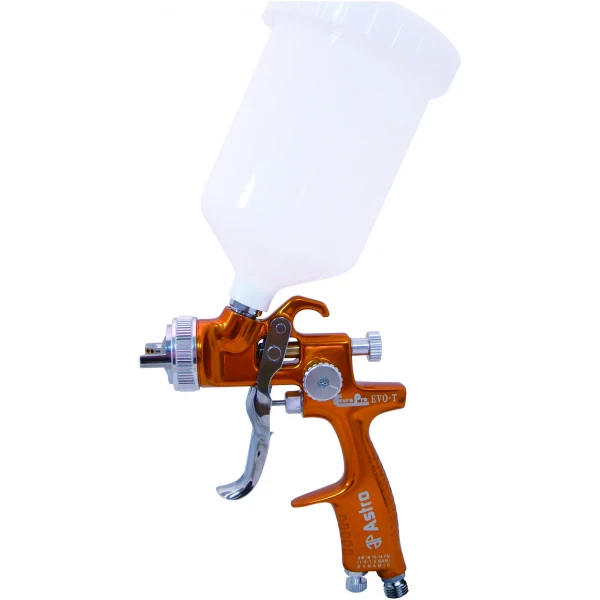

EuroPro Forged EVO-T Spray Gun with Plastic Cup – 1.3mm Nozzle

DURABLE & LIGHTWEIGHT
• Forged body provides longer tool life
• Anodized body for corrosion protection
• Internal coated passages
• Stainless steel needle and fluid tip
• Slick finish for faster & easier cleaning
• Lightweight: 285 grams (0.6 Lbs)

HIGH EFFICIENCY
• “Air Curtain” design to minimize overspray and pollution
• Superior transfer efficiency to reduce paint consumption, as tested in the lab of Fraunhofer IPA, Germany
• Finest atomization & classic quality
• Innovative, advanced EVO-T technology (Patented)

QUICK THREAD TECHNOLOGY
• 1.5 Turn to lock/unlock the air cap
• 3 Turns to lock/unlock the fluid nozzle
• 4 Turns to lock/unlock the fluid cup
• Wide threads for easy cleaning
• M11*P1.5 female thread fluid joint
• Compatible with most traditional and disposable cup systems

SMOOTH OPERATION
• Soft trigger pull to reduce fatigue
• Precise lubricated adjustment knobs for better control
• Innovative CNC machining to avoid the need for gaskets behind the fluid tip

Product Info

Download(658 KB)

SPECIFICATIONS:
Nozzle Size: 1.3
Cup Capacity: 600ml
Operation Pressure: 15-19psi
Weight: 0.6lbs. (285g)
Gun Dimensions W x H: 7" x 5-3/4" (175mm x 145mm)
Avg. Air Consumption: 11.5-13.5cfm @19psi (compare to 8-9.5cfm @30psi on 30psi guns)
Air Inlet Thread NPT: 1/4"
Required Compressor: 2.2-3.7hp
Max. Pattern at 4" to 7" Distance: 9"-101/4" (230-260mm)
Air Cap Output: 10psi
Air Hose I.D. Size: 6-8mm

Compatible Adapters:
3M PPS2: #S27, 2611
Norton Paint System Adapter: 21664 9A
DeVilBiss DeKups: DPC-10
SATA’s Adapter #13 Part #150136
