Item # 1144

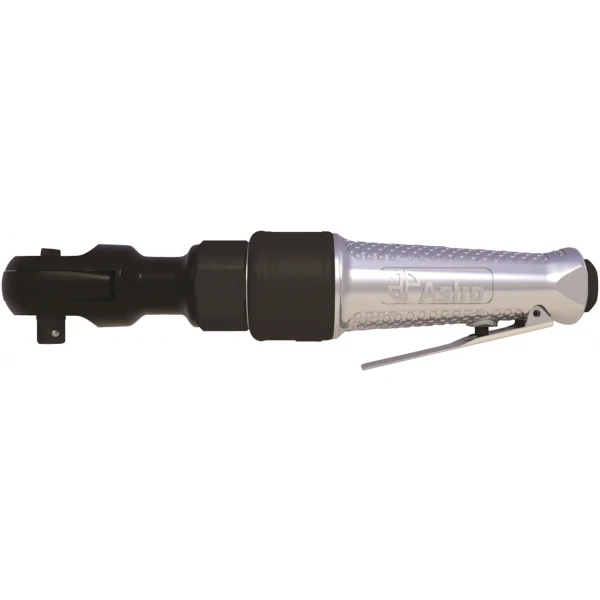

ONYX 1/2″ Heavy Duty Ratchet Wrench – 70ft/lbs.

• High performance motor deliever 60% higher output torque than standard ratchet
• Stepless variable speed throttle for total user versatility
• Short & robust crankshaft transmits power with low vibration & high efficiency
• “Precision Forged” ratchet yoke made of Cr-Mo alloy steel with optimized heat treatment to maintain peak performance and prevent “Spreading” which makes other air ratchet lose power
• Built-in twin expansion chamber divided by air flow guide fins to reduce exhaust noise
• 360 degree adjustable exhaust directs air away from operator and the work
• Precision machined anvil ensure that ratchet pawl & yoke can properly engage with each other at any position
• “Power forged” P/M planetary gears with nitrading ring gear submit smooth operation coupled with exceptional durability

Product Info

Download(8 MB)

SPECIFICATIONS:
Working Torque Range: 5-70 Ft/Labs (7-95Nm)
Maximum Torque: 80 ft. /lbs. (108Nm)
Free Speed: 200 rpm
Recommend Air Pressure: 90 PSI (6.35 kgs)
Overall Length: 10.23" (260 mm)
Standard Bolt Size:1/2" (19mm)
Air Consumption: 3.25 CFM
Air Inlet: 1/4 NPT. (PT)
Minimum Hose Size: 5/16" (8mm)
Weight: 2.58 Lbs (7.17 kgs)

Drive Size

Model

Type

SKU: 1144 Categories: ,
